SwapHogg Roll-off Unit
About this bed:
Call for pricing — 321-269-6807
The SwapHogg roll-off system turns one cab and chassis truck into a dump truck, flatbed, platform truck or container hauler. A Warn electric winch and Champion hoist pull the body on and off in minutes, so one truck and one driver can cover several jobs in a day.
Key features
- Swap dump bodies, platforms, flatbeds and containers in minutes
- Warn 15K electric winch with 30' cable and 4.5-ton swivel hook
- Champion hoist with a 50° dump angle (10-ton)
- Low-profile subframe keeps the load height down
- Stainless side rollers on greaseless bronze bearings
- Works with SwapHogg bodies and other brands' bodies
Available sizes and fitments
- 9' frame for 60" CA chassis
- 11' frame for 84" CA chassis
- 13' frame for 108"–120" CA chassis
- 14' frame for 120"–138" CA chassis

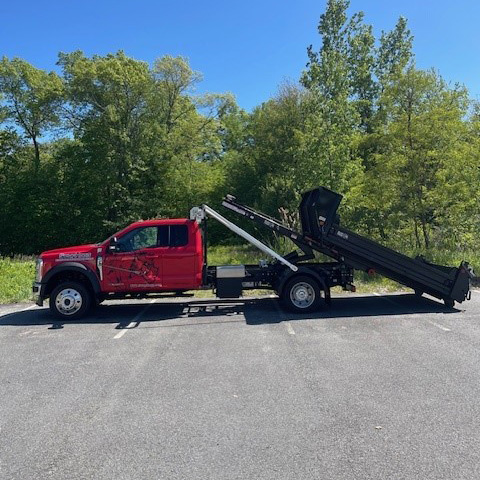

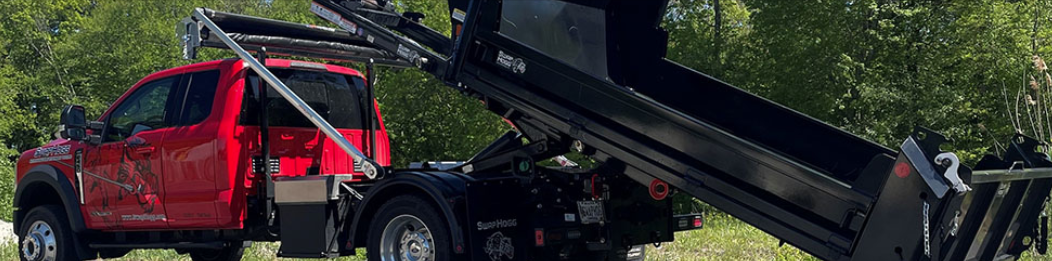

Shown with optional SwapHogg bodies and equipment.
Installation is available at Titus Trucks, and we can quote the body, options and install together. Call Titus Trucks at 321-269-6807
No items found.
Frames
- 9' frame (SH0915E): 60" CA, approx. 1,066 lb
- 11' frame (SH1115E): 84" CA, approx. 1,150 lb
- 13' frame (SH1315E): 108"–120" CA, approx. 1,646 lb
- 14' frame (SH1415E): 120"–138" CA, approx. 1,688 lb
Standard features
- Low-profile subframe and mounting height
- 50° dump angle, 10-ton rating
- Champion 6" bore x 15" stroke hoist
- 6" x 2" structural tube frame
- Warn 15K electric industrial winch with stainless tensioner
- 30' EIPS 1/2" cable with 4.5-ton swivel hook

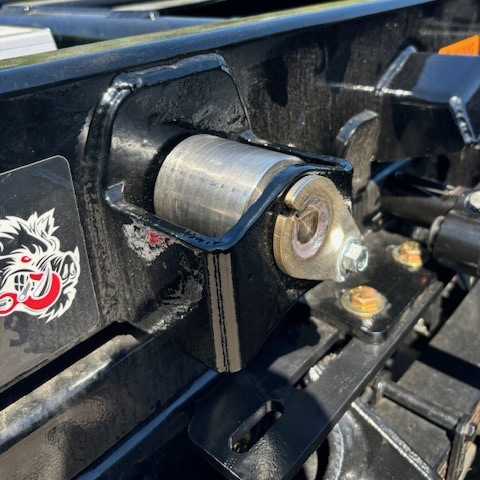

- 303 stainless side rollers on greaseless bronze bearings
- Exterior body prop, winch-in stop switch, self-lubricating nylon cable roller

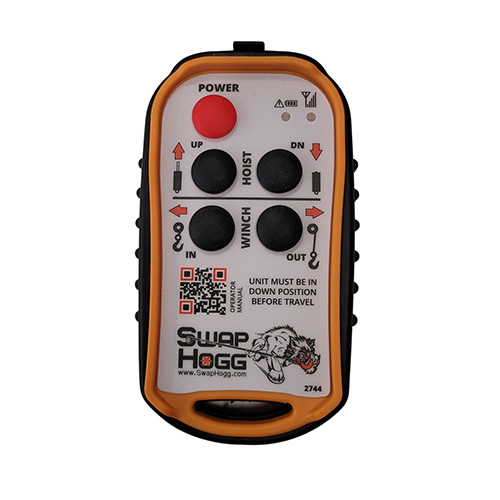

- 4-button in-cab control pendant
- PPG paint over corrosion-resistant epoxy primer
Compatible SwapHogg bodies
- Steel and aluminum dump bodies

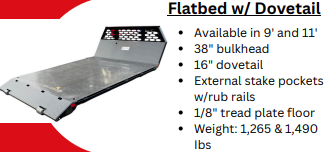

- Platform bodies, flatbeds with dovetail and multi-deck platforms
- Open-top, chipper-top and storage containers

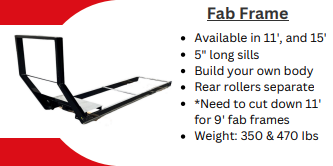

- Fab frames for custom bodies
Specifications are from the manufacturer's website and may change without notice. Weights are approximate.
