EBY Renegade GN Gooseneck Service Body

About this bed:

Call for pricing — 321-269-6807

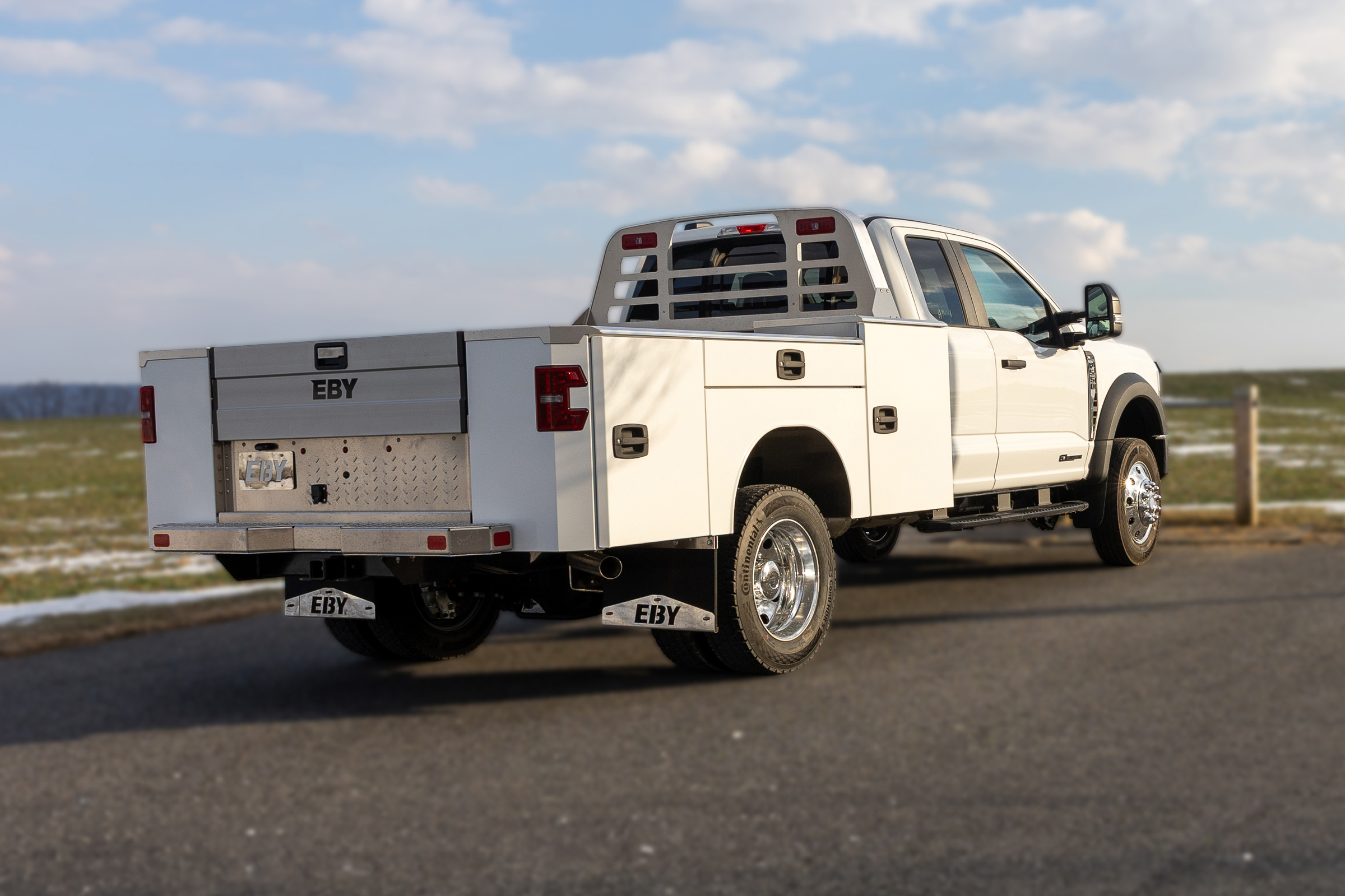

The EBY Renegade GN is an aluminum service body with a built-in gooseneck hitch, so one truck can tow heavy equipment and still work as a full service rig. Its flat, open deck and organized cabinets let a crew haul a trailer in the morning and run service calls in the afternoon.

Key features

Integrated gooseneck hitch trap door cover
49" wide unobstructed deck

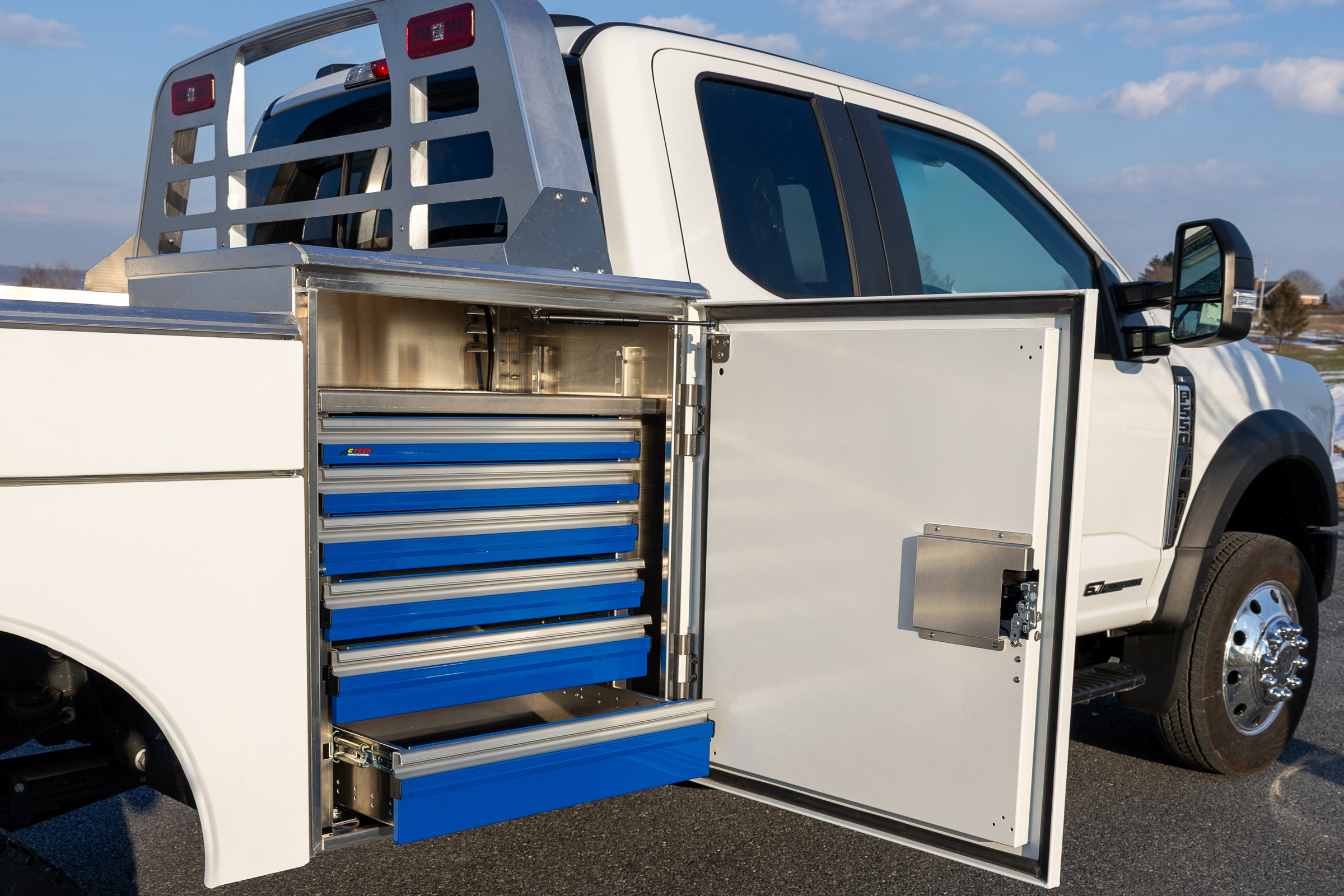

Horizontal pull-out drawer with 275 lb full-extension slides
Aluminum shelves rated 250 lb each
Vertical doors with nitrogen gas-assist struts
USA-made LED stop/tail/turn and back-up lights with integrated strobes
Chamfered 'stubby' rear bumper with receiver hitch access

Available sizes and fitments

Lengths: 8'6", 9'3" and 11'3"
Widths at drip edge: 80" (SRW), 96" (DRW), 98" (DRW pickup bed removal)

Some photos show optional equipment.

Installation is available at Titus Trucks, and we can quote the body, options and install together. Call Titus Trucks at 321-269-6807

All BODIES

No items found.

Load space

49" wide floor
19" side wall/bulkhead height at the front vertical cabinet; 15" from the horizontal drawer rearward
3/16" aluminum floor with partial shear traction pattern
6 recessed tie-down rings (8' and 9'), 8 rings (11')
Integrated gooseneck hitch trap door

Tailgate

13" closed height
15" depth deployed

Cabinets & doors

Powder-coated two-panel aluminum doors with rain gutter
Protected seals and hidden hinges
Horizontal pull-out drawer with dividers, 275 lb slides
Shelves rated 250 lb static load

Safety

USA-made LED lighting with integrated strobes in body and headache rack
82" x 9" chamfered rear bumper with punched surface and receiver recess

Options

Gooseneck hitch assembly
Rear receiver hitch and plug
Drawer modules
E-Lock keyless entry with cabinet lighting

Specifications are from the manufacturer's website and may change without notice. Weights are approximate.
