EBY Aluminum Flatbed Dump Body
About this bed:
Call for pricing — 321-269-6807

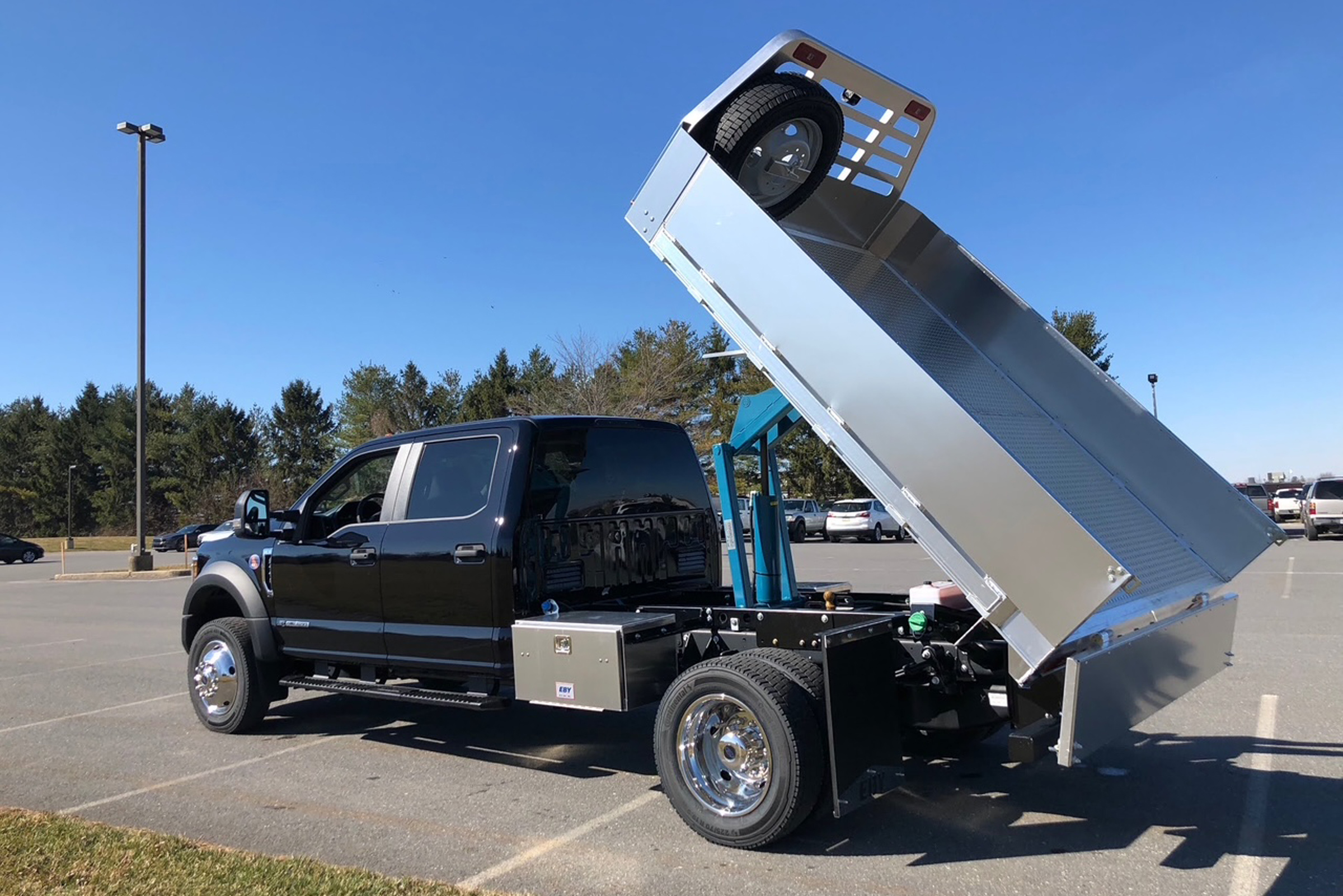

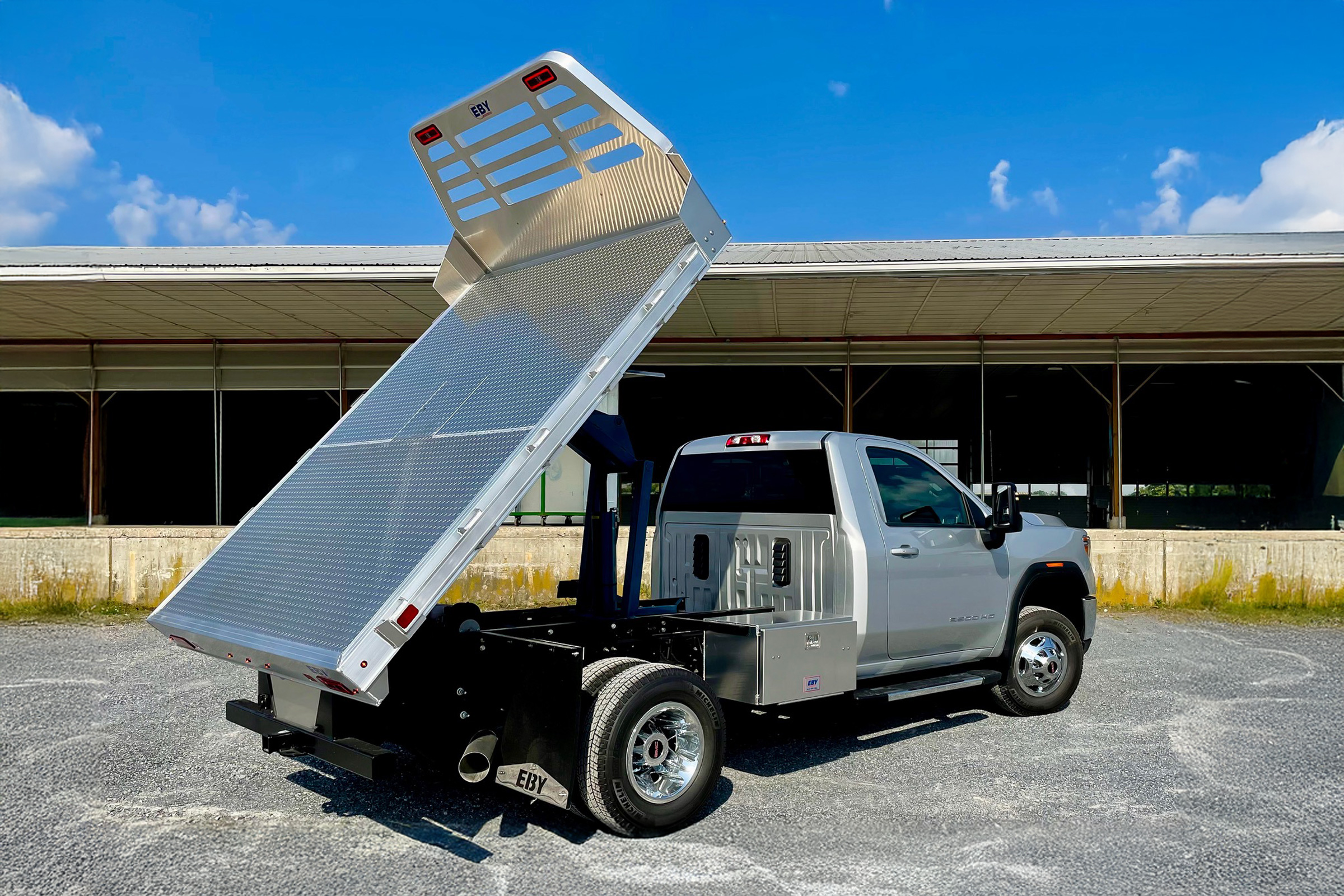

The EBY Flatbed Dump is an aluminum flatbed with a hydraulic hoist, so it hauls like a flatbed and dumps like a dump body. It works well for construction, landscaping and farm crews, and it has a gooseneck trap door and corrosion-resistant construction.
Key features
- Harsh hoist with electric pump
- .140" 5086 aluminum diamond plate floor
- 16" x 16" flip-over gooseneck trap door
- 38" tapered bulkhead with punched window grille
- Extruded side and rear rails with stake pockets and rub rails
- LED clearance and brake lights
Available sizes and fitments
- 9'3" x 97" for 60" CA DRW cab & chassis
- 11'3" x 97" for 84" CA DRW cab & chassis
Some photos show optional equipment.
Installation is available at Titus Trucks, and we can quote the body, options and install together. Call Titus Trucks at 321-269-6807
No items found.
Floor
- .140" 5086 aluminum alloy diamond plate
- 16" x 16" flip-over gooseneck trap door
- 3" channel crossmembers on 12" centers
- 5" mounting J-sills, full length, set 34" apart
Side rails
- Extruded 3-1/2" x 5-1/2" side angle rails
- Extruded 3-1/2" x 8-1/2" rear angle rail
- 1-1/2" x 3-1/2" stake pockets (sides)
- 3/8" x 3" rub rails (sides)
Bulkhead
- 38" high, 80" wide at base tapering to 56" at top
- Punched window grille 18" x 70"
- 6" front corner wing brackets
Lights & hoist
- 7 red and 2 amber 1" clearance lights
- Red rectangular brake lights on rear and bulkhead
- Harsh hoist with electric pump
Popular options
- Steel ICC bumper with 2.5" hitch
- 2-5/16" gooseneck ball
- 6" or 15" removable side kit and tailgate
- Aluminum or stainless-overlay toolboxes
Specifications are from the manufacturer's website and may change without notice. Weights are approximate.
