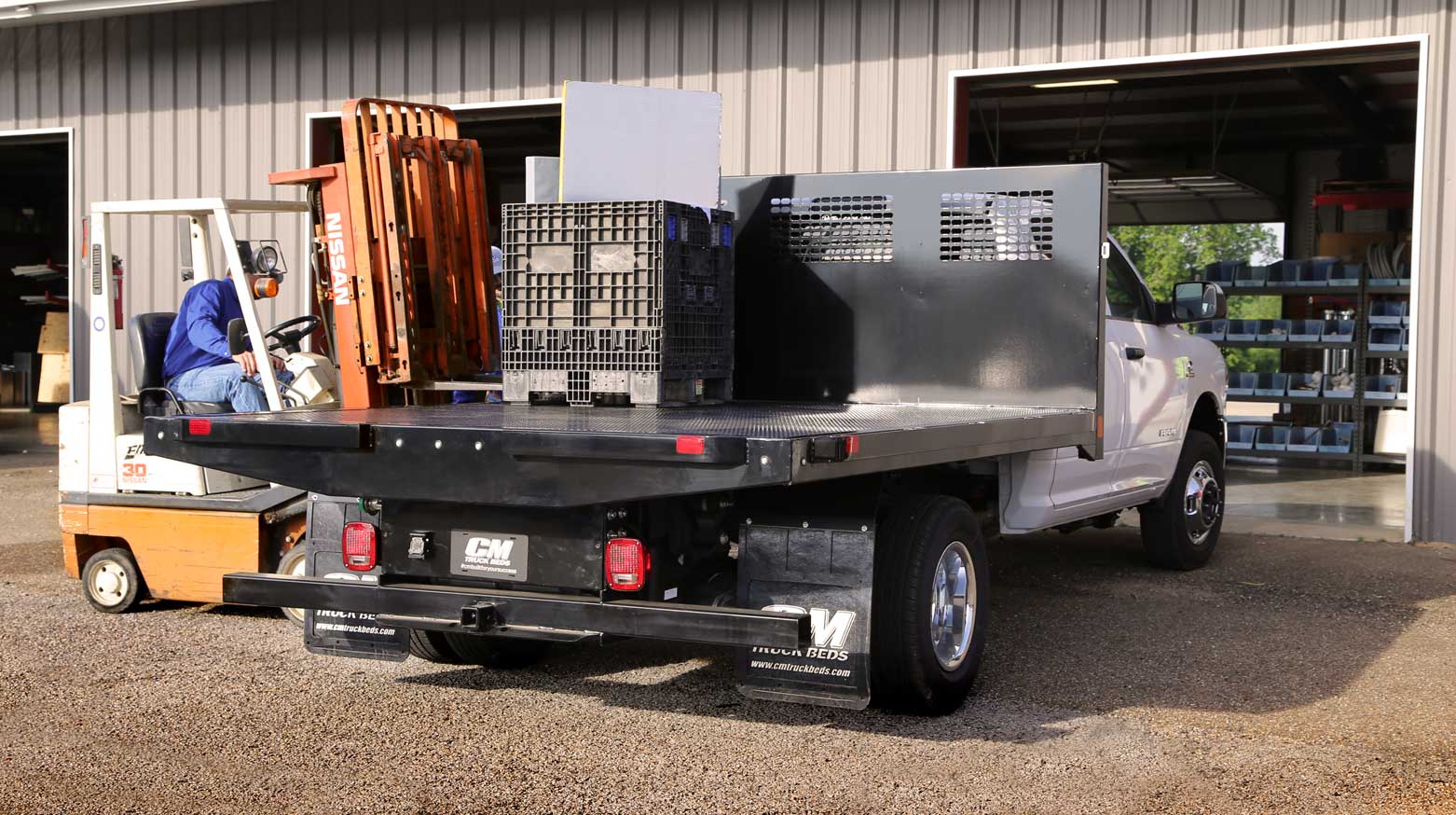

CM PL HD Heavy Duty Steel Platform Body

Starting at $7,177 · Call for final price

About this bed:

Starting at $7,177 — Call for final price

The CM PL HD is a heavy-duty steel platform body in 12' to 24' lengths. It's built with a 3/16" tread plate deck and 8" structural channel frame for heavier medium-duty work.

Key features

  • 3/16" steel tread plate deck
  • 8" structural steel channel frame
  • 3/8" x 3" side rails with stake pockets
  • Bolt-on bulkhead with window cutout (60" tall bulkhead standard on 18' and longer)
  • DOT-approved LED marker lighting
  • Optional ICC receiver hitch, stake sides and hoist (upfitter installed)

Available sizes

  • Lengths: 12', 14', 16', 18', 20', 22', 24'
  • Widths: 101"

Price is for the body only. Installation, delivery and options are quoted separately. Installation is available but not required.

Manufacturer photos; equipment shown may vary.

Call Titus Trucks at 321-269-6807 for your final price, availability and installation.

No items found.

Sizes offered

LengthWidthApprox. weight12'101"1,996 lb14'101"2,271 lb16'101"2,545 lb18'101"2,855 lb20'101"3,129 lb22'101"3,404 lb24'101"3,678 lb

Construction

  • Material: Steel
  • Deck: 3/16" steel tread plate
  • Frame rails: 8" structural steel channel
  • Side rails: 3/8" x 3" with stake pockets
  • Bulkhead: Bolt-on with window cutout; 60" tall on 18'+
  • Width: 101"

Specs are from the manufacturer's current price book and may change. Weights are approximate.
