CM LB Steel Landscape Body
About this bed:
Starting at $10,472 — Call for final price
The CM LB is a steel landscape body with a mesh dovetail and stand-up rear ramps, for loading mowers and equipment. A tool cage doubles as the cab protector, and fold-down side rails with tool holders keep hand tools organized.
Key features
- Mesh steel dovetail with two spring-loaded 72" stand-up rear gates/ramps
- Tool cage that doubles as a cab protector
- Fold-down side rails with tool storage holders
- Slide-out deck access ladder
- Steel tread plate deck
- (6) welded tie-downs with D-rings
Available sizes
- Lengths: 10', 12', 14', 16'
- Widths: 97"
Price is for the body only. Installation, delivery and options are quoted separately. Installation is available but not required.
Manufacturer photos; equipment shown may vary.
Call Titus Trucks at 321-269-6807 for your final price, availability and installation.
Sizes offered
LengthWidthConfigurationApprox. weight10'97"+5' mesh dovetail2,600 lb12'97"+5' mesh dovetail3,000 lb14'97"+5' mesh dovetail3,600 lb16'97"+5' mesh dovetail4,000 lb
Construction
- Material: Steel

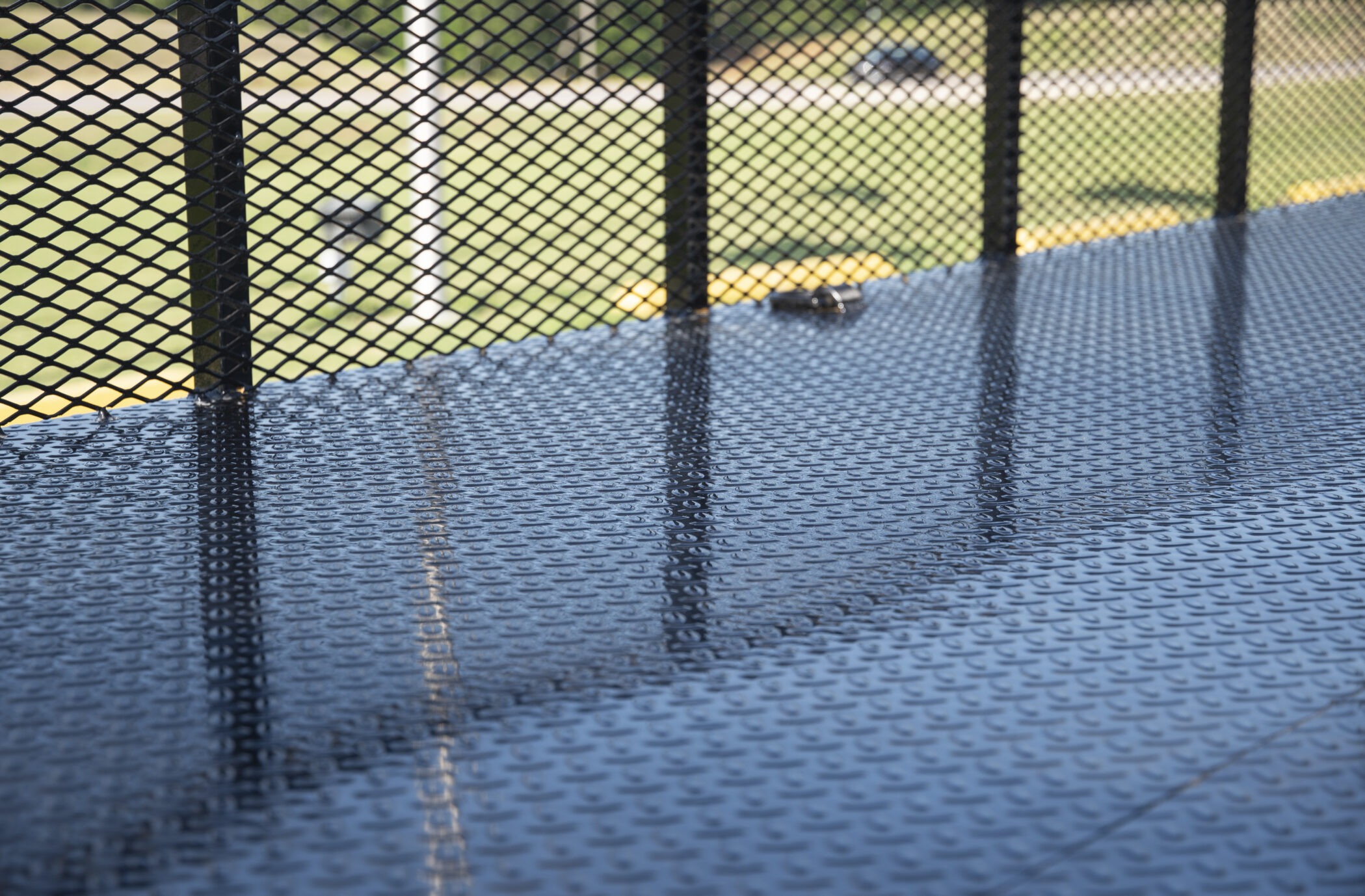

- Deck: 1/8" steel tread plate
- Dovetail: Mesh steel with two 72" spring-loaded rear ramps
- Cab protector: Tool cage
- Side rails: Fold-down with tool holders
- Frame rails: 4" structural steel channel
- Crossmembers: 3" steel channel
- Tie-downs: (6) welded with D-rings
Specs are from the manufacturer's current price book and may change. Weights are approximate.
