CM ALPL Aluminum Platform Body
Starting at $6,385 · Call for final price
About this bed:
Starting at $6,385 — Call for final price
The CM ALPL is a 101"-wide aluminum platform body in 12' to 24' lengths. It cuts deck weight compared with steel, which leaves more payload on medium-duty trucks.
Key features
- 1" extruded aluminum deck
- Aluminum channel frame (8" on 22' and 24')
- Bolt-on bulkhead with window cutout
- 3/8" x 2" aluminum side rails with stake pockets
- Optional ICC receiver hitch, stake sides and underbody toolbox
Available sizes
- Lengths: 12', 14', 16', 18', 20', 22', 24'
- Widths: 101"
Price is for the body only. Installation, delivery and options are quoted separately. Installation is available but not required.

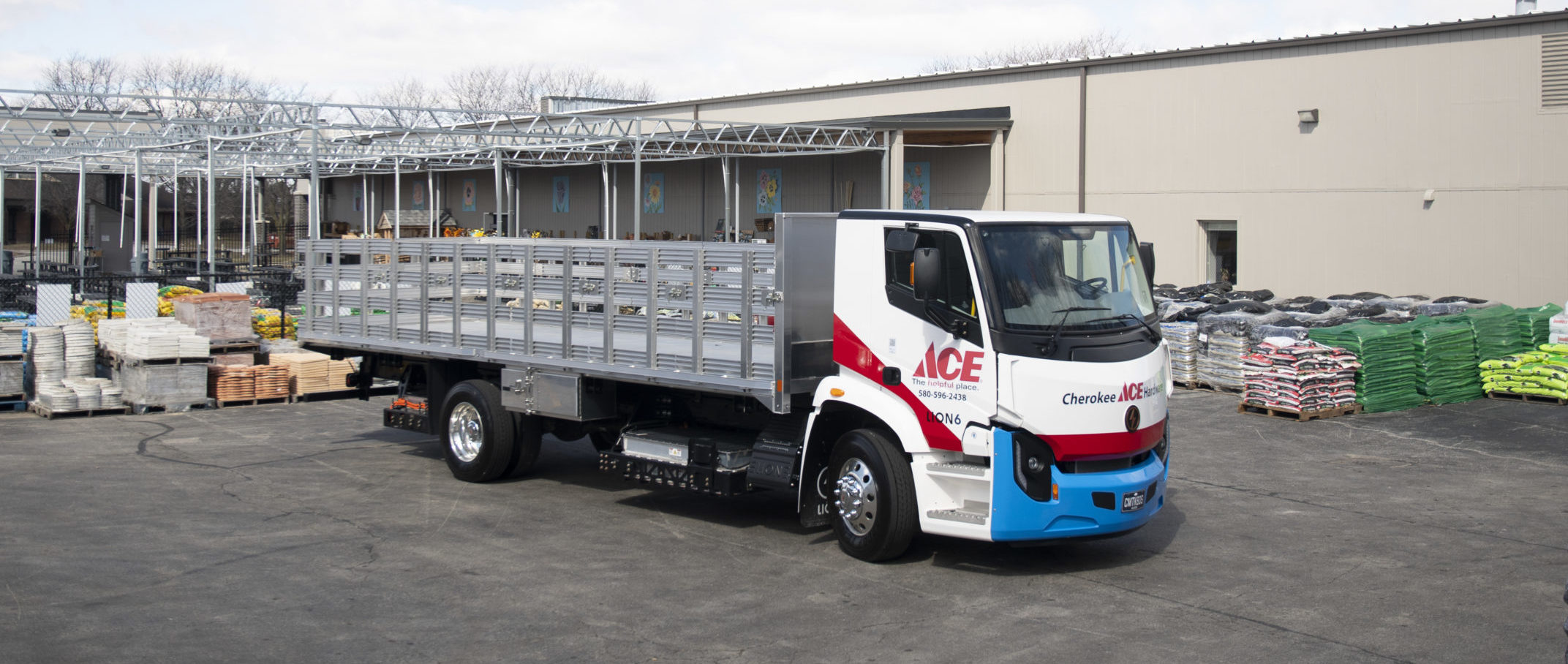

Shown with optional stake sides.
Call Titus Trucks at 321-269-6807 for your final price, availability and installation.
No items found.
Sizes offered
LengthWidthApprox. weight12'101"699 lb14'101"789 lb16'101"878 lb18'101"1,013 lb20'101"1,102 lb22'101"1,191 lb24'101"1,281 lb
Construction
- Material: Aluminum
- Deck: 1" extruded aluminum
- Frame rails: 4" aluminum channel; 8" on 22' & 24'
- Crossmembers: 3" extruded aluminum channel
- Side rails: 3/8" x 2" aluminum extrusion, aluminum stake pockets
- Bulkhead: Bolt-on with window cutout
- Width: 101"
Specs are from the manufacturer's current price book and may change. Weights are approximate.
