Bedrock Onyx Series Hauler Flatbed
About this bed:
Call for pricing — 321-269-6807

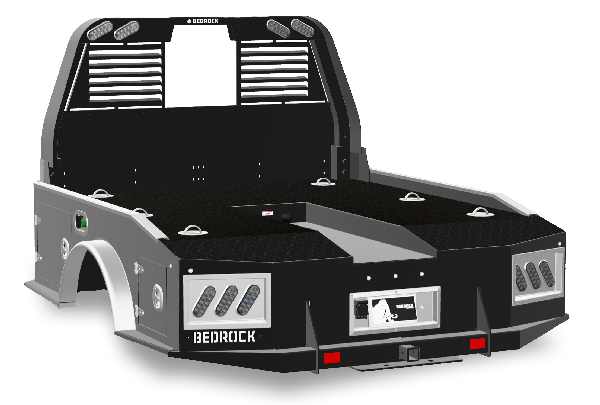

The Bedrock Onyx is a hauler-style skirted flatbed with a full steel C-channel frame and a rear dovetail for loading. Integrated toolboxes, stainless fenders and trim, and six flush 360° tie-downs make it a strong choice for towing and hauling.
Key features
- Full steel frame with 4" and 3" structural C-channel
- 1/8" steel diamond plate deck
- 11.75° rear dovetail
- Skirted with integrated toolboxes and chrome T-handle locking latches
- Stainless steel fenders, taillight boxes and trim
- Six 360° flush-mount tie-downs, 6,000 lb each
- Gooseneck trough with B&W 30,000 lb ball
Available sizes and fitments
- Lengths: 7', 8'6", 9'4" and 11'4"
- Single or dual rear wheel
- Cab & chassis or pickup bed take-off (box delete)
- Ford F-250/F-350, GM 2500HD/3500HD, Ram 2500/3500 and other makes
Some photos show optional equipment.
Installation is available at Titus Trucks, and we can quote the body, options and install together. Call Titus Trucks at 321-269-6807
No items found.
Sizes & fitment
- 7', 8'6", 9'4" and 11'4"
- Cab-to-axle fits: 38", 40", 42", 56", 57", 58", 60", 84"
- Single or dual rear wheel
Onyx construction
- 4" and 3" structural C-channel frame
- 1/8" steel diamond plate deck
- 11.75° dovetail at the rear
- Skirted with integrated toolboxes
- Aluminum diamond plate trim; stainless fenders, taillight boxes and trim
- (6) 360° flush-mount zinc-plated tie-downs rated 6,000 lb each
- Gooseneck trough standard
Standard features
- Shot-blasted to white metal, then powder coated (corrosion and UV resistant)
- Lifetime DOT-approved LED lighting; back-up lights in the headache rack double as work lights
- 7-way and 4-way trailer plugs, recessed by the license plate; sealed pre-wired harnesses
- Integrated 2" receiver hitch rated 18,000 lb (keeps the OEM hitch on Ford 2017+, GM 2020+, Ram 2019+)
- Patented adjustable headache rack with window-cut design and light/camera cutout
- B&W 2-5/16" welded gooseneck ball rated 30,000 lb, removable articulating lid, spring-loaded chain anchors
- Blade-style 7-way plug in the gooseneck box
Bed options
- Gooseneck trough
- Smooth 10-gauge or 3/16" diamond plate deck
- Spike bed
- Hauler headache rack with vertical posts or 60" headache rack
- 24,000 lb receiver hitch upgrade
- Square back bed
- B&W turnover ball box (5th-wheel compatible)
- Accessory kits: mud flaps, side steps, spare tire mount, fold-down rail kit and more
Specifications are from the manufacturer's website and may change without notice. Weights are approximate.
