Bedrock Diamond Series Flatbed
About this bed:
Call for pricing — 321-269-6807

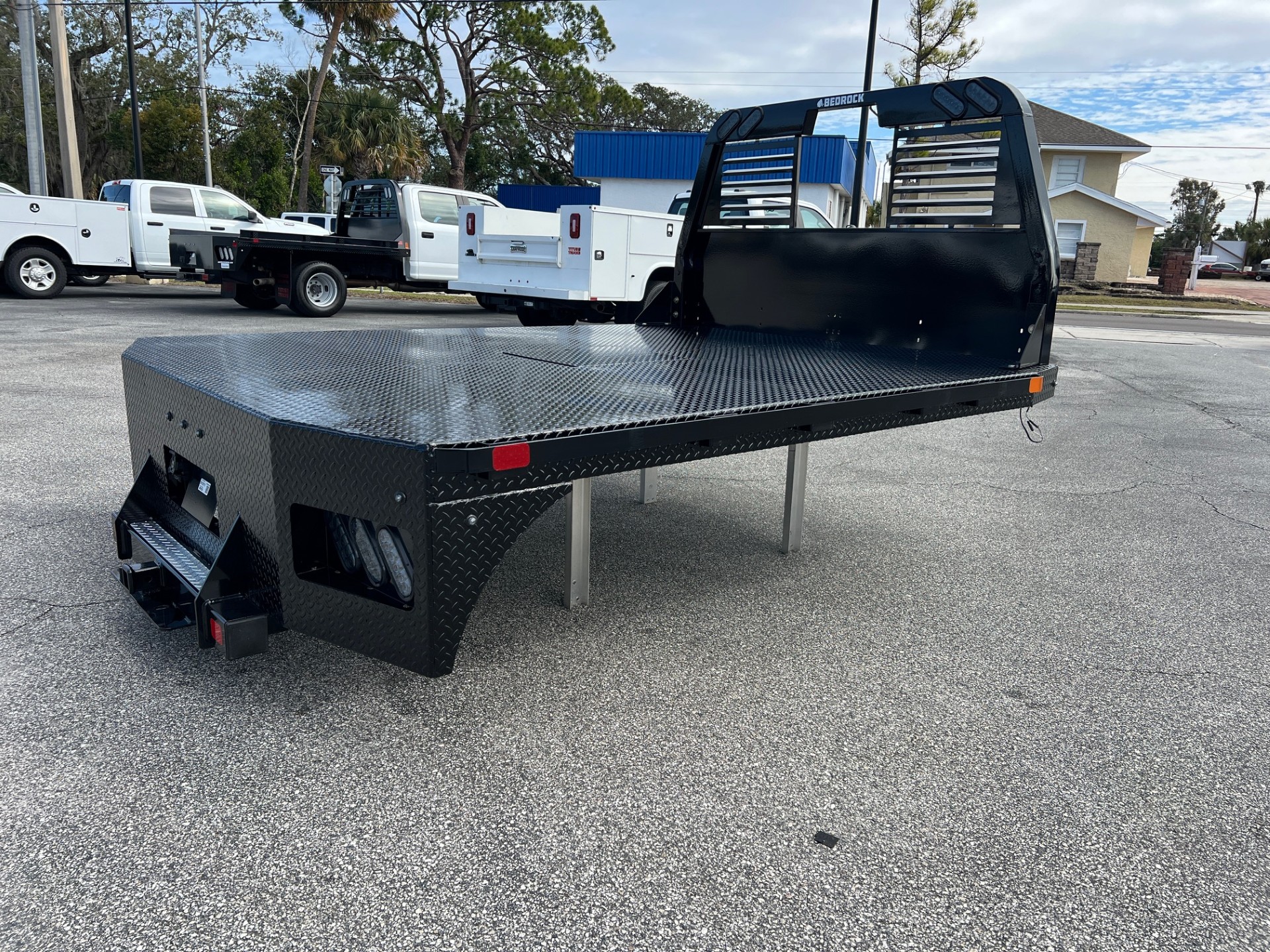

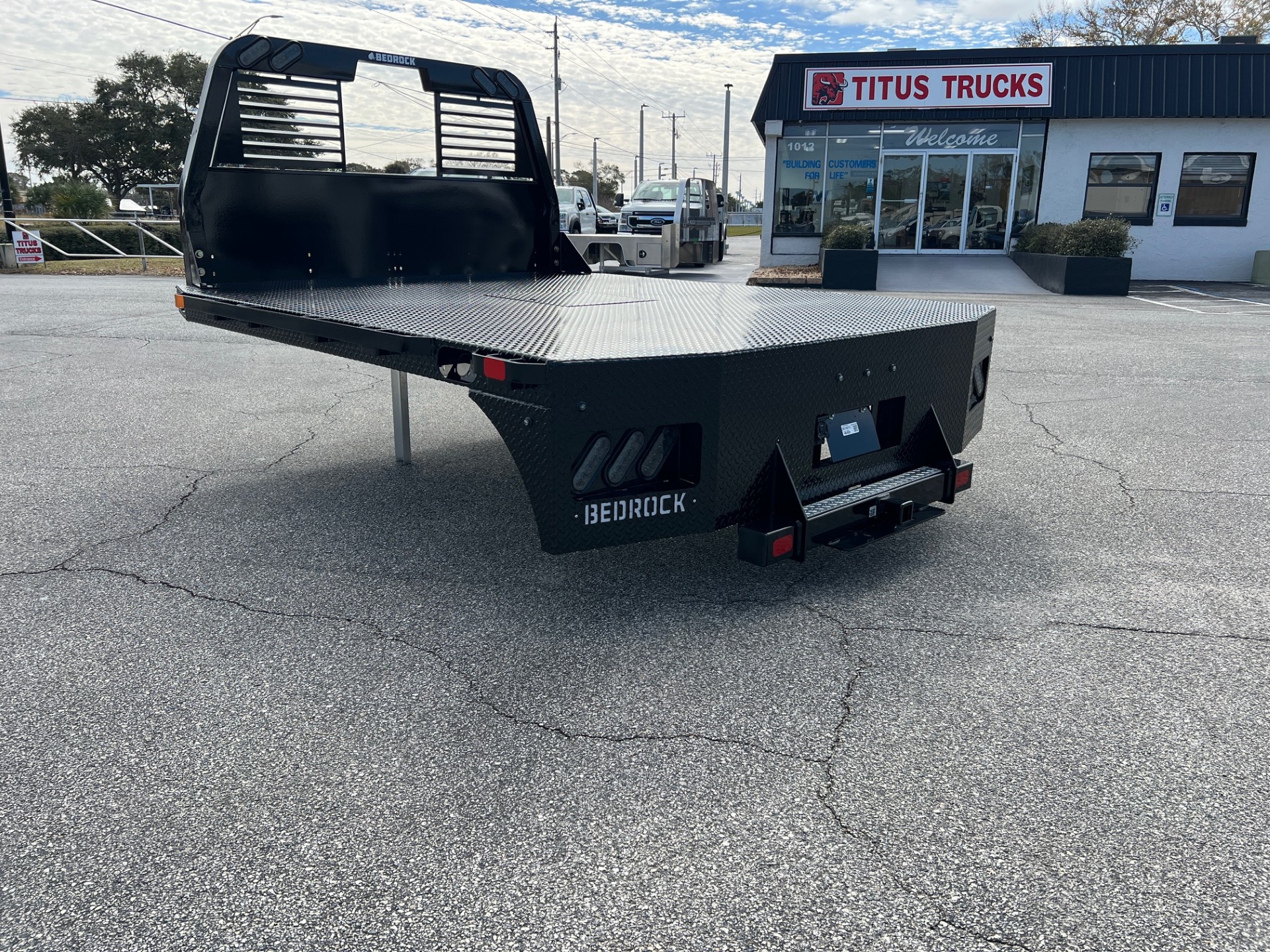

The Bedrock Diamond is a non-skirted steel flatbed with diamond plate on the deck, rear and sides. It's a tough, simple work bed with an 18,000 lb receiver, a 30,000 lb gooseneck ball and lots of options.
Key features
- Non-skirted steel flatbed
- Diamond plate deck, rear and sides
- 3/8" x 2" rub rail and stake pockets
- B&W 30,000 lb gooseneck ball and 18,000 lb integrated receiver
- Patented adjustable headache rack with LED lighting
- Shot-blast and powder-coat finish
Available sizes and fitments
- Lengths: 7', 8'6", 9'4" and 11'4"
- Single or dual rear wheel
- Cab & chassis or pickup bed take-off (box delete)
- Ford F-250/F-350, GM 2500HD/3500HD, Ram 2500/3500 and other makes
Some photos show optional equipment.
Installation is available at Titus Trucks, and we can quote the body, options and install together. Call Titus Trucks at 321-269-6807
No items found.
Sizes & fitment
- 7', 8'6", 9'4" and 11'4"
- Cab-to-axle fits: 38", 40", 42", 56", 57", 58", 60", 84"
- Single or dual rear wheel
Diamond construction
- Non-skirted
- Steel diamond plate deck, rear and sides
- 3/8" x 2" rub rail and stake pockets
Standard features
- Shot-blasted to white metal, then powder coated (corrosion and UV resistant)
- Lifetime DOT-approved LED lighting; back-up lights in the headache rack double as work lights
- 7-way and 4-way trailer plugs, recessed by the license plate; sealed pre-wired harnesses
- Integrated 2" receiver hitch rated 18,000 lb (keeps the OEM hitch on Ford 2017+, GM 2020+, Ram 2019+)
- Patented adjustable headache rack with window-cut design and light/camera cutout
- B&W 2-5/16" welded gooseneck ball rated 30,000 lb, removable articulating lid, spring-loaded chain anchors
- Blade-style 7-way plug in the gooseneck box
Bed options
- Gooseneck trough
- Smooth 10-gauge or 3/16" diamond plate deck
- Spike bed
- Hauler headache rack with vertical posts or 60" headache rack
- 24,000 lb receiver hitch upgrade
- Square back bed
- B&W turnover ball box (5th-wheel compatible)
- Accessory kits: mud flaps, side steps, spare tire mount, fold-down rail kit and more
Specifications are from the manufacturer's website and may change without notice. Weights are approximate.
